DIN and Standard Parts / Rivets / Half Hex-Body Rivet Nut

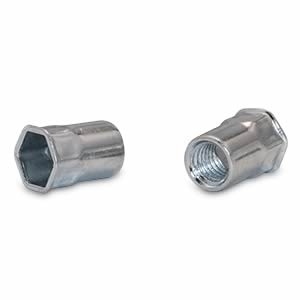

Half Hex-Body Rivet Nut

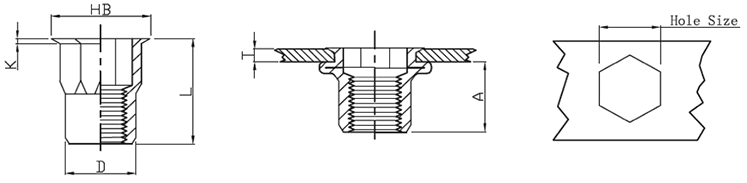

Thread	T	A	Hole Size	D	HB	K	L
M4	0,5-2	8	6	5,9	7	0,5	12,0
M5	0,5-2,5	8,5	7	6,9	8	0,5	13,0
M6	1-3,5	10,5	9	8,9	10	0,6	16,0
M8	1-4	11	11	10,9	12	0,65	17,5
M10	1-4,5	12,5	13	12,9	14,5	0,75	21,0
