DIN and Standard Parts / Rivets / Full Hex-Body Rivet Nut

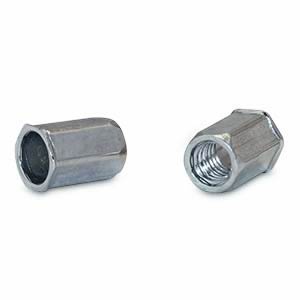

Full Hex-Body Rivet Nut

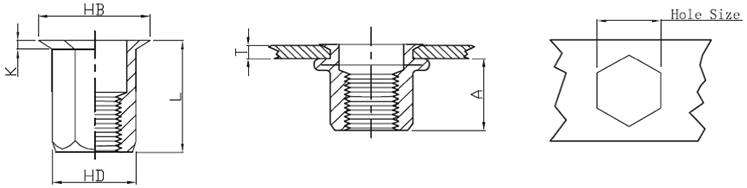

Thread

T

A

Hole Size

HD

HB

K

L

M4	0,5-2,5	6,7	6	5,9	7,0	0,5	11,0
M5	0,5-3	9	7	6,9	8	0,5	14,5
M6	1-3,5	10	9	8,9	10	0,6	16,0
M8	1-4	11,5	11	10,9	12	0,65	18,0
M10	1,0-3,5	12,5	13	12,9	14,5	0,75	19,0
