Closed End Rivet Nut

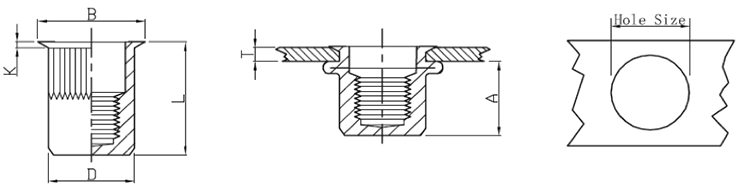

Thread	T	A	Hole Size	D	B	K	L
M4	0,5-2	11	6	5,9	7	0,5	15,0
M5	0,5-2	12,5	7	6,9	8	0,5	16,5
M6	0,5-3	15,5	9	8,9	10	0,6	20,5
M8	0,5-3	17	11	10,9	12	0,6	23,0
M10	1-3,5	18,2	13	12,9	14	0,7	24,5
